High Strength Prefab Light Steel Structure Workshop
Product Attributes
| Attribute |
Value |
| Material |
Steel |
| Specification |
Custom |
| Delivery Time |
15-45 Days |
| File Formats |
Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time |
7 Days If Standard Parts We Have |
| Processing |
Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Life span |
80 years |
| Design |
Design as the customer's drawing |
Product Description

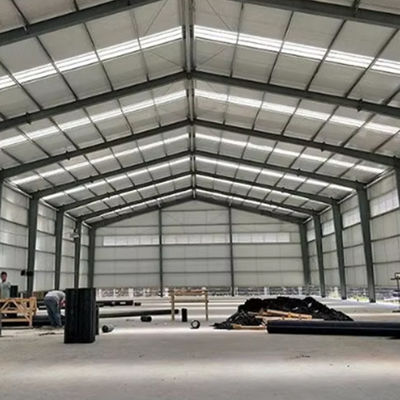

Our high-strength prefabricated steel structure workshop is a durable and spacious industrial facility designed for manufacturing, assembly, or storage purposes. Constructed from premium steel frames with advanced welding and bolting techniques, these workshops offer exceptional stability, seismic resistance, and fire protection. The open-span design maximizes space utilization, facilitating efficient workflow and accommodating large-scale machinery. Customizable options include insulation, ventilation, and overhead crane systems to meet specific operational requirements. Prefabricated components enable rapid construction, reducing costs and downtime compared to traditional concrete buildings.
Technical Specifications

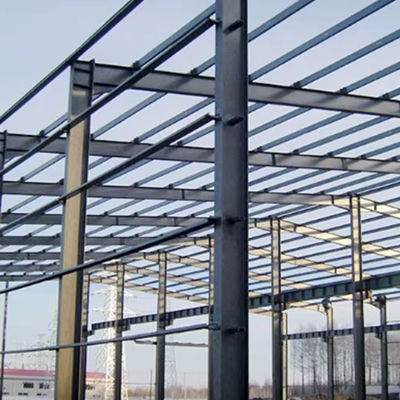

| Main Steel Frame |
Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel
|
| Secondary Frame |
Purlin: Q235, Q355 C and Z purlin
Knee brace: Q235, Q355 Angle Steel
Tie Rod: Q235, Q355 Circular Steel Pipe
Brace: Q235, Q355 Round Bar
Vertical and Horizontal Support: Q235, Q355 Angle Steel, Round Bar or Steel Pipe
|
| Maintenance System |
Roof Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet
|
| Accessories |
Window: Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout: PVC
|
| Performance |
Live load on Roof: 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade: 12 Grades
Earthquake-resistance: 8 Grades
Structure Usage: Up to 50 years
|
| Finishing Options |
Paint Options: Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Vast array of colors and textures available
|
Company Profile
Our company specializes in steel structure housing and sandwich panel production with the most advanced equipment. Our annual production capacity reaches 100 million square meters for civil and industrial light steel constructions, and 130 million square meters for various panels including sandwich panels, fireproof glass wool boards, rock wool boards, and corrugated sandwich panels.
Since inception, we've adhered to the business philosophy of "Implementation of Hege's strategy to create first-class brand" and the service purpose of "be responsible for the products, be satisfactory to user." We've established a complete scientific management system and unique business model, with distribution networks in over 10 provinces and cities. Our products have been successfully exported to South America, Europe, Middle Asia, Africa and other regions.
Production Process
Case Studies
Customer References
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific transportation details (by sea or air) and destination port/airport.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail orders. MOQ is negotiable - please contact us to discuss your requirements.
Q4: Do you provide ODM/OEM service?
A: Yes. We offer complete OEM&ODM services from design concept to finished goods, including prototype reviewing, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product specifications, quantity, delivery requirements
- Payment details
- Shipping information (name, address, phone, shipping method)
- Freight forwarder contact if applicable
- Official purchase order or we can provide proforma invoices
