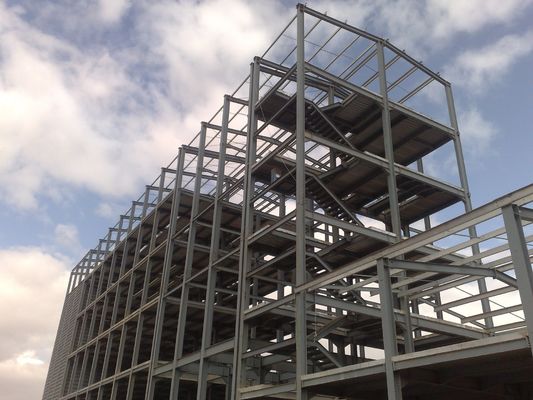

Customized Size Prefabricated Steel Structure with Portal Frame and 3D Model/CAD Drawings

Product Description:

The Prefabricated Steel Structure is a highly versatile and efficient building solution designed to meet the diverse needs of modern construction projects. This innovative product falls under the category of pre-engineered steel structures, which are engineered and manufactured with precision to ensure rapid assembly, durability, and cost-effectiveness. By utilizing factory-made steel building components, the Prefabricated Steel Structure offers unparalleled quality control and consistency, resulting in superior performance and longevity.

One of the standout features of this Prefabricated Steel Structure is its wall options. Customers can choose between steel sheet walls or sandwich panels, depending on their specific insulation and aesthetic requirements. Steel sheet walls provide robust protection and a sleek, industrial appearance, while sandwich panels offer enhanced thermal insulation and soundproofing, making them ideal for environments where energy efficiency is a priority. Both wall types are designed to integrate seamlessly with the overall steel framework, ensuring a cohesive and sturdy construction.

The design process of the Prefabricated Steel Structure is supported by advanced 3D modeling and CAD drawings. These tools enable precise planning and visualization, allowing architects, engineers, and clients to collaborate effectively and make informed decisions. The 3D models provide a detailed representation of the structure, highlighting every component and connection point, which helps in minimizing errors during fabrication and assembly. CAD drawings serve as comprehensive blueprints that guide the off-site fabrication of the steel structure, ensuring that each part is manufactured to exact specifications.

In terms of shape and architectural flexibility, the Prefabricated Steel Structure excels by offering a variety of geometric configurations. Whether the project requires a square, circle, arch, triangle, or rectangle, this steel structure can be customized to fit the desired form. This adaptability makes it suitable for a wide range of applications, from industrial warehouses and commercial buildings to agricultural facilities and recreational centers. The ability to choose from multiple shapes allows designers to optimize space utilization and aesthetic appeal according to the project’s unique demands.

This product is classified as a light steel structure, which means it is designed to be lightweight without compromising strength. The use of light steel components facilitates easier transportation and faster installation, reducing overall construction time and labor costs. Despite its lightness, the structure maintains excellent load-bearing capacity and resistance to environmental stresses such as wind, snow, and seismic activity. This balance of lightness and strength makes the Prefabricated Steel Structure an ideal choice for both temporary and permanent buildings.

The frame of the Prefabricated Steel Structure is based on a portal frame design. Portal frames are renowned for their structural efficiency and simplicity, characterized by rigid connections between beams and columns that create clear, open interior spaces free from intermediate supports. This frame type allows for large spans and flexible interior layouts, making it perfect for applications that require unobstructed floor areas, such as manufacturing plants, distribution centers, and sports facilities. The portal frame also enhances the building’s stability and resistance to lateral forces.

As an off-site fabricated steel structure, the Prefabricated Steel Structure is produced in controlled factory environments, which ensures high precision and quality standards. The off-site fabrication process minimizes on-site construction time, reduces waste, and mitigates the impact of weather conditions on the building schedule. Components are delivered ready for quick assembly, leading to faster project completion and lower overall costs. This method also enhances safety by limiting the amount of work performed at heights and in potentially hazardous conditions on the construction site.

In summary, the Prefabricated Steel Structure is an exemplary pre-engineered steel structure solution that combines innovative design, versatile shape options, and high-quality materials to deliver a reliable and efficient building system. Its factory-made steel building components, including steel sheet or sandwich panel walls, coupled with 3D modeling and CAD drawing-based design, ensure precision and customization. The light steel portal frame construction offers strength, flexibility, and speed, making it an excellent choice for a wide array of construction needs. As an off-site fabricated steel structure, it provides significant advantages in terms of installation speed, cost savings, and environmental impact, solidifying its position as a leading option in modern steel building technology.

Features:

• Product Name: Prefabricated Steel Structure
• Wall Options: Steel Sheet or Sandwich Panels
• Size: Customized to meet specific requirements
• Design: Available in 3D Model and CAD Drawings
• Shape Variations: Square, Circle, Arch, Triangle, Rectangle
• Frame Type: Portal Frame
• Features Steel Modular Construction Unit for efficient assembly
• Incorporates Pre-assembled Steel Framework for quick installation
• Utilizes Pre-built Steel Structural System ensuring durability and strength

Technical Parameters:

Applications:

The Prefabricated Steel Structure product is designed to offer exceptional versatility and efficiency across a wide range of application occasions and scenarios. Featuring a modular metal construction system, this product is ideal for projects that require rapid assembly and high structural integrity. Its design flexibility allows it to be customized into various shapes including square, circle, arch, triangle, and rectangle, catering to diverse architectural and functional requirements.

One of the primary application occasions for this prefabricated steel structure is in industrial buildings such as warehouses, factories, and workshops. The portal frame type provides robust support, allowing for large open spaces free of internal columns. This makes it perfect for manufacturing facilities where machinery and equipment need ample room for operation. Additionally, the light typ of the structure ensures that the overall weight is minimized without compromising strength, facilitating easier transportation and installation.

In commercial construction, the pre-assembled steel framework can be utilized to create retail stores, shopping malls, and exhibition halls. The ability to customize the size according to specific project requirements ensures that the structure can efficiently accommodate varying spatial needs. Architects and engineers benefit from the availability of 3D model and CAD drawings during the design phase, which enables precise planning and visualization, reducing errors and speeding up the approval process.

For temporary and semi-permanent structures like event venues, sports facilities, and emergency shelters, the modular metal construction system offers unparalleled adaptability. The pre-assembled steel framework allows for quick assembly and disassembly, making it highly suitable for projects where time and flexibility are critical. The variety of shapes available—from arches that provide aesthetic appeal to triangles that offer strong load distribution—enhance both the functionality and visual impact of these structures.

Moreover, in agricultural and storage applications, the customized prefabricated steel structure serves as a durable and weather-resistant shelter for equipment, livestock, and crops. Its portal frame design ensures stability under varying environmental conditions, while the customizable size and shape options allow for tailored solutions that maximize space utilization.

In summary, the prefabricated steel structure product with its pre-assembled steel framework and modular metal construction system is a highly adaptable solution suitable for industrial, commercial, temporary, and agricultural applications. Its range of customizable shapes and sizes, combined with detailed 3D model and CAD designs, makes it an ideal choice for projects seeking efficiency, durability, and design flexibility.
